How to Select the Right Gate Opener for Your Gate Size
- Skyline Gate Automation
- Sep 10
- 2 min read
Choosing the right gate opener for your property is essential for ensuring security, convenience, and long-term performance. The correct choice depends largely on your gate size, weight, and power requirements, as well as whether you’re considering a sliding gate motor, swing gate opener, or solar-powered system. In this guide, we’ll break down the key factors to help you select the best automatic gate opener for your needs.
Why Gate Size and Weight Matter?
Not all gate openers are built the same. A motor designed for a small residential gate may not be powerful enough for a large industrial one. Manufacturers rate openers based on:
Gate Length (Size): Longer gates require stronger motors to handle the load efficiently.
Gate Weight: Heavier gates, especially solid steel or timber designs, place more strain on the motor.
Usage Frequency: Residential gates may open a few times a day, whereas commercial gates may cycle hundreds of times daily.
See our range of sliding gate motors for residential and commercial properties.
Types of Automatic Gate Openers

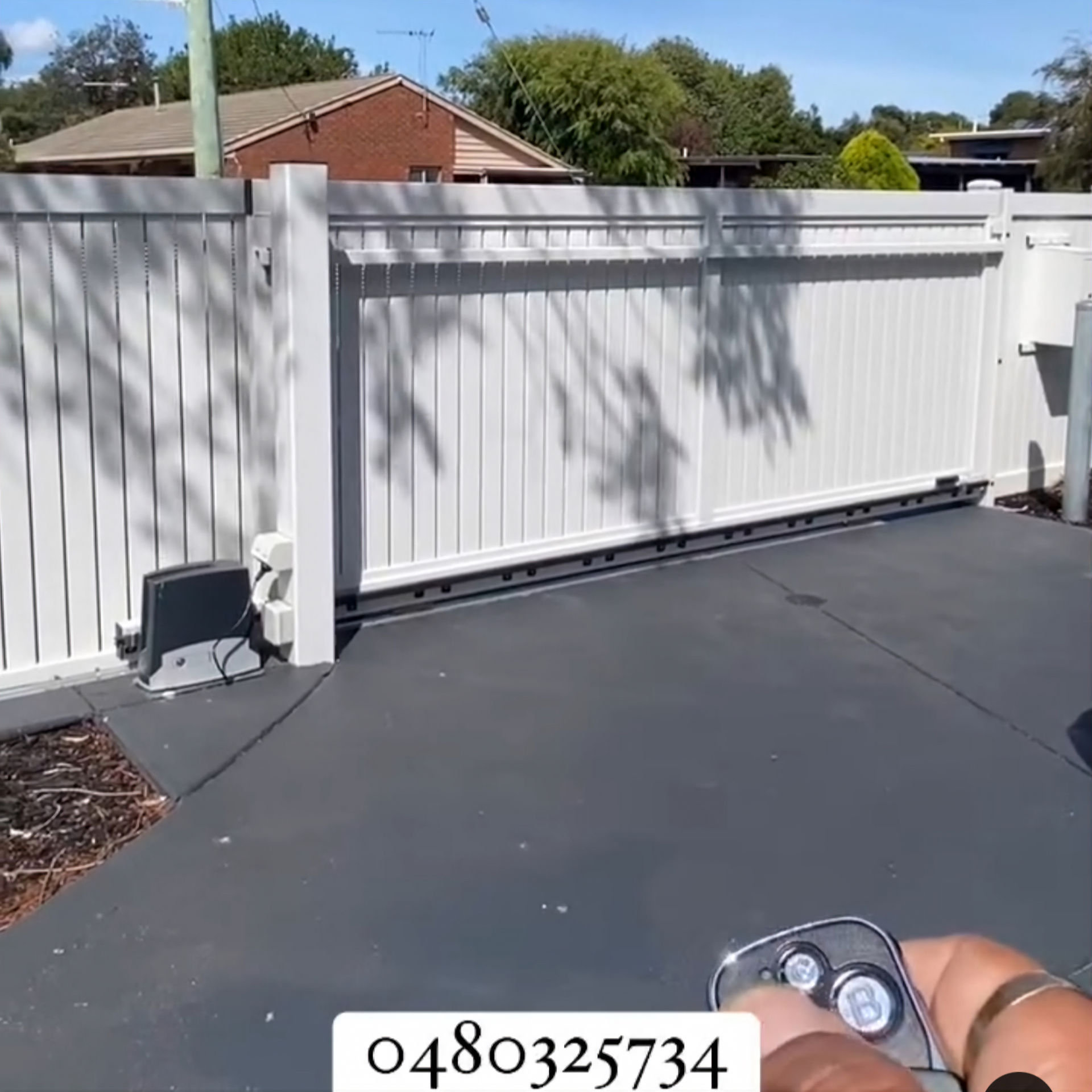

Sliding Gate Motors
Sliding gate openers are ideal for properties with limited swing space. They work by moving the gate horizontally along a track. For sliding gates, motor power should match the weight and width of the gate.
Lightweight residential sliding gates: 300–600kg rated motors
Medium commercial gates: 700–1200kg rated motors
Heavy industrial gates: 1800kg+ rated motors
Swing Gate Openers
Swing gate motors are used when gates open inward or outward like doors. They are rated by leaf length and weight.
Swing gates up to 3m per leaf: Standard 24V DC swing gate motors
Large swing gates up to 5m per leaf: Heavy-duty hydraulic or brushless motors
Solar Gate Openers
If your gate is far from a mains power supply, solar power is a cost-effective and eco-friendly solution. A 30W solar panel with a 12Ah 24V battery system can easily power small to medium gates. For heavier gates, additional solar panels or higher-capacity batteries may be required.
Choosing the Right Gate Motor Based on Gate Size
Here’s a quick reference guide to help you match your gate size with the correct opener:
Gate Type | Gate Size / Weight | Recommended Opener Type |
Small residential gate | Up to 3m / 300kg | 24V DC sliding or swing motor |
Medium driveway gate | 3–5m / 500–1000kg | Heavy-duty sliding or swing motor |
Large farm gate | Up to 6m / 800kg+ | Solar-powered or LV system |
Industrial gate | 5m+ / 1800kg+ | Brushless or hydraulic motor |
Other Factors to Consider
Power Source: Mains, low voltage, or solar (depends on location).
Duty Cycle: High-use commercial sites require brushless or hydraulic motors.
Safety Features: Photo beams, obstacle detection, warning lights.
Future Expansion: Consider access control devices such as GSM openers or keypads.
Conclusion
Selecting the right gate opener for your gate size ensures smooth operation, safety, and durability. Always consider your gate’s length, weight, and daily usage before making a decision. Whether you need a residential sliding gate opener, a solar-powered farm gate solution, or a heavy-duty industrial motor, Skyline Gate Automation has you covered.
Contact Skyline Gate Automation today for expert advice and the best gate automation solutions in Australia.
